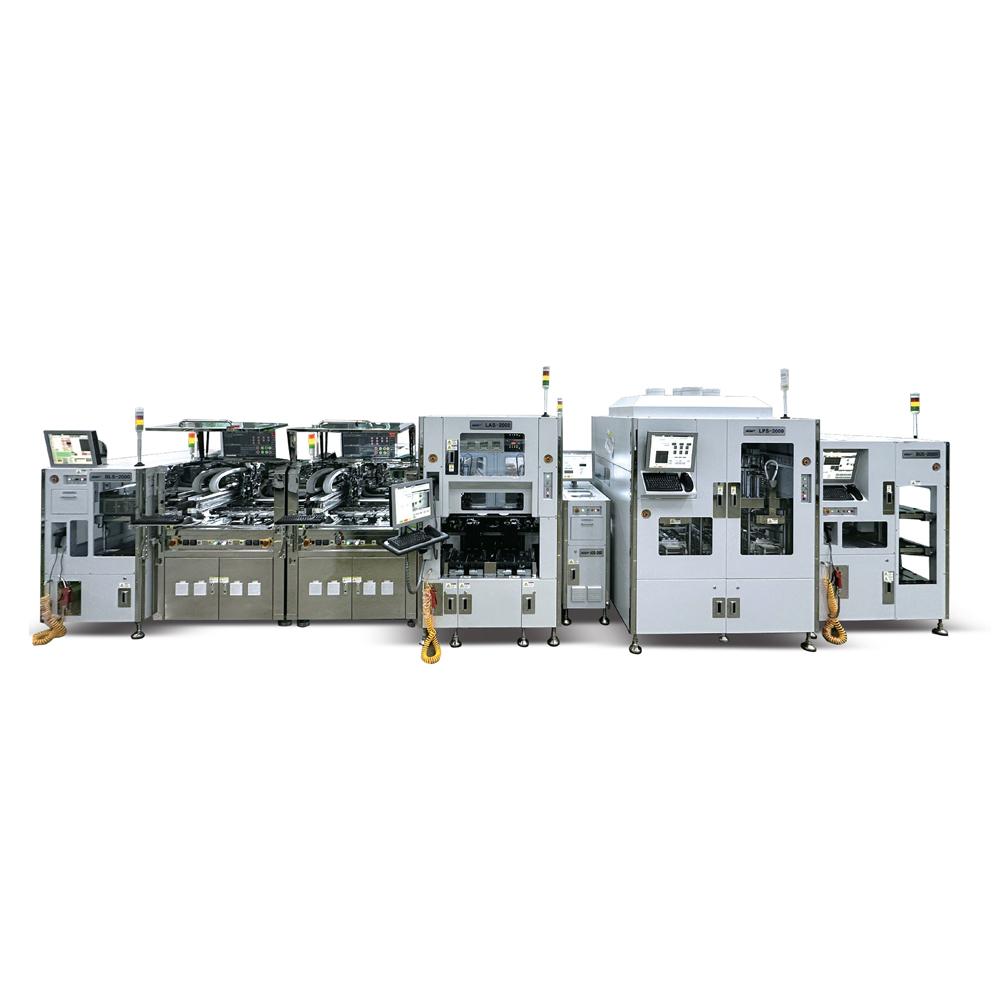

full image DAP-423 Auto Dispensing&Lid Attach System with Cure
SSP

DAP-423 Auto Dispensing&Lid Attach System with Cure

  • Payment
    T/T
  • MOQ
    1 Set
  • Supply Ability
    10,000 Set per One-Time
  • Country of sale
    Asia, Americas, Europe, World Wide
  • Catalogue
  • PRICE

    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    SSP
    Model DAP-423
  • origin
    Republic of Korea
  • Size(Capacity)
    8,000(l) × 1,550(W) × 2,000(H)
  • Function
    FCBGA, BGA, LGA
  • Package Includes
    Dispensing Unit, Lid Attach Unit, Press&Force Control, Curing Unit, Handling System


PRODUCT DESCRIPTION

System Performance
Application : fcBga, Bga, lga
Handling capability :  Strip/Boat 62–210 mm (W) × 50–320 mm (l)
                               Unit (max.) 100 mm (W) X 100 mm (l)
Dispensing area       : 330 × 210 mm common area 110 mm
Cycle time / UPH     : Pick & Place 2.1 sec/lid
Curing temp. capability : tolerance ±5 ℃, max 220 ℃
Dispense accuracy   : ±0.03 mm


Dispense Volume Repeatability : 10mg ±3 %, 5mg ±5 %
Attach force control : 0.5–10 kgf ( Real time monitoring)
Lid attach accuracy  : ± 0.03 mm, ±0.1 °
Press force control  : ± 10% (max. 1,000 kgf)
Curing temp. capability : tolerance ±5 ℃, max 220 ℃
Nozzle cleaning : 3 types (Suction, clamping with Rubber, Stamping)
Foot Print : 8,000(l) × 1,550(W) × 2,000(H)
